Table Model
80DT / 110DT / 140DT / 180DT / 210DT / 250DT
This is one of the fully-developed table type index drives, which has high rigidity because of the adoption of a wider and lower table in whose center a tough hollow shaft is employed. This housing is so designed than an attachment can be installed on its sides, therefore, it is most suitable to rotary automatic assemblers, transfer machines and automatic wrappers.

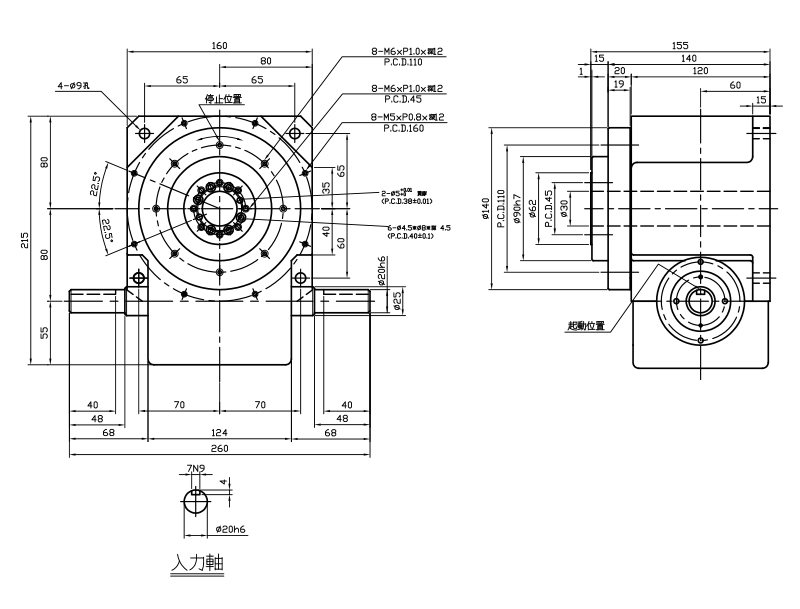

80DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 520 |
| Allowable radial load on output shaft | C2 | kgf | 220 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 220 |
| Max. repetitive bending force on input shaft | C4 | kgf | 160 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 9.5 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.03 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 20 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.

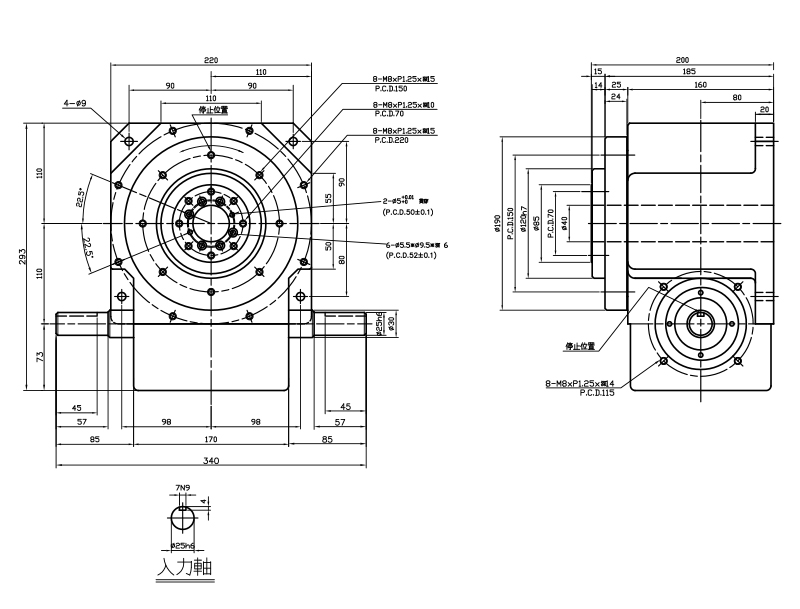

110DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 860 |
| Allowable radial load on output shaft | C2 | kgf | 420 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 300 |
| Max. repetitive bending force on input shaft | C4 | kgf | 250 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 25 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.01 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 50 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.

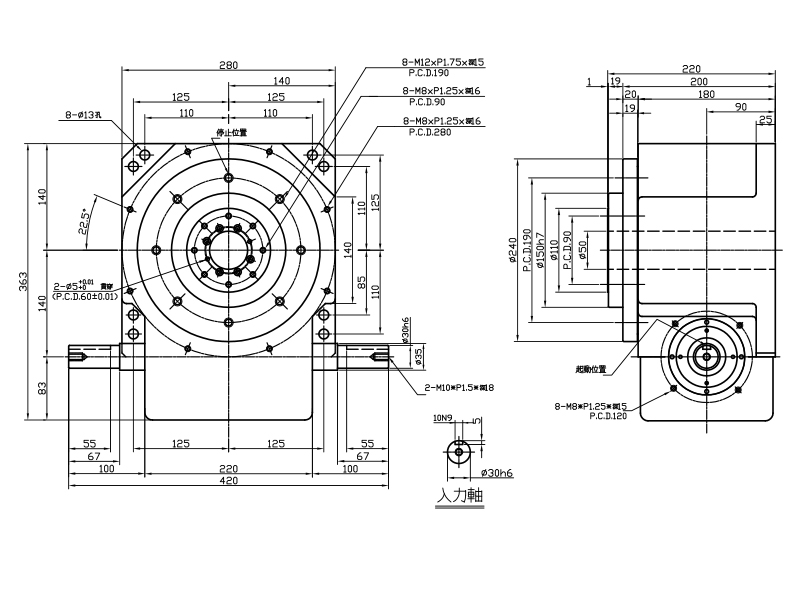

140DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 1050 |
| Allowable radial load on output shaft | C2 | kgf | 720 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 500 |
| Max. repetitive bending force on input shaft | C4 | kgf | 350 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 53 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.07 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 85 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.

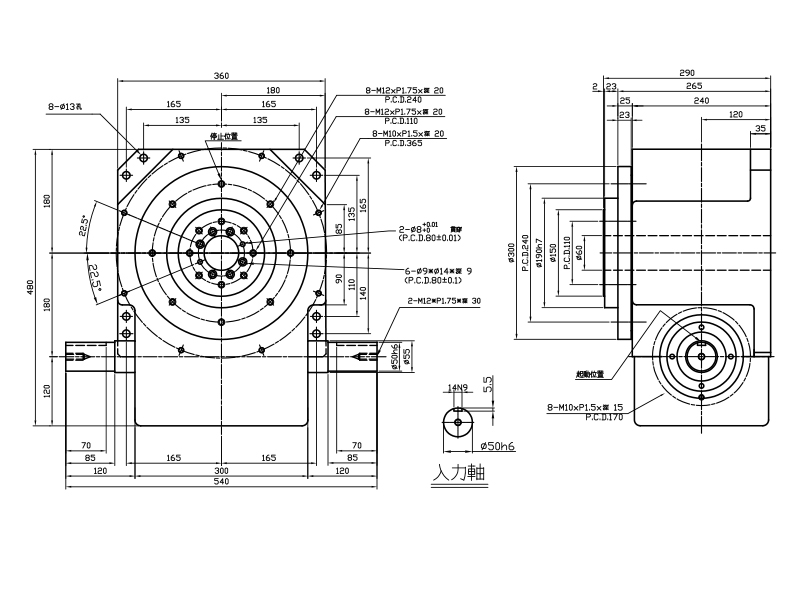

180DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 1500 |
| Allowable radial load on output shaft | C2 | kgf | 1100 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 1200 |
| Max. repetitive bending force on input shaft | C4 | kgf | 960 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 220 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.23 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 190 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.

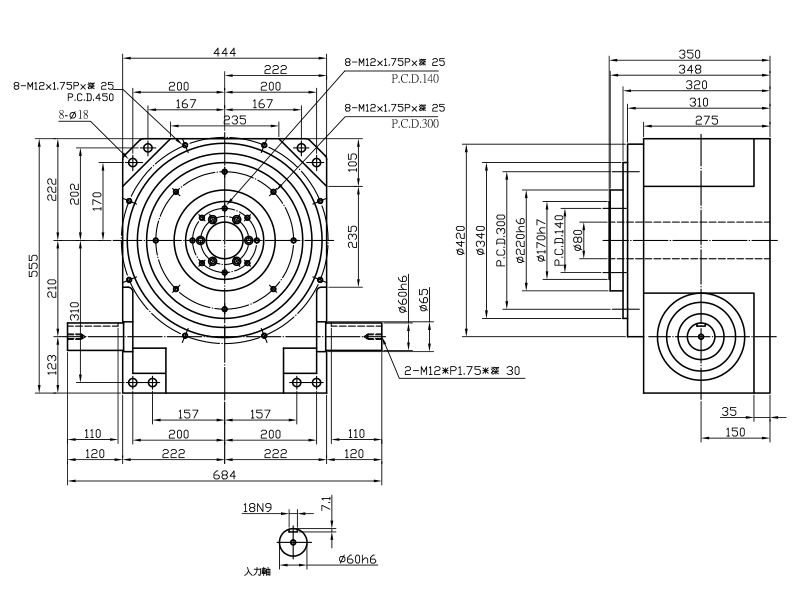

210DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 1950 |
| Allowable radial load on output shaft | C2 | kgf | 1520 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 1570 |
| Max. repetitive bending force on input shaft | C4 | kgf | 1130 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 460 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.62 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 450 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.

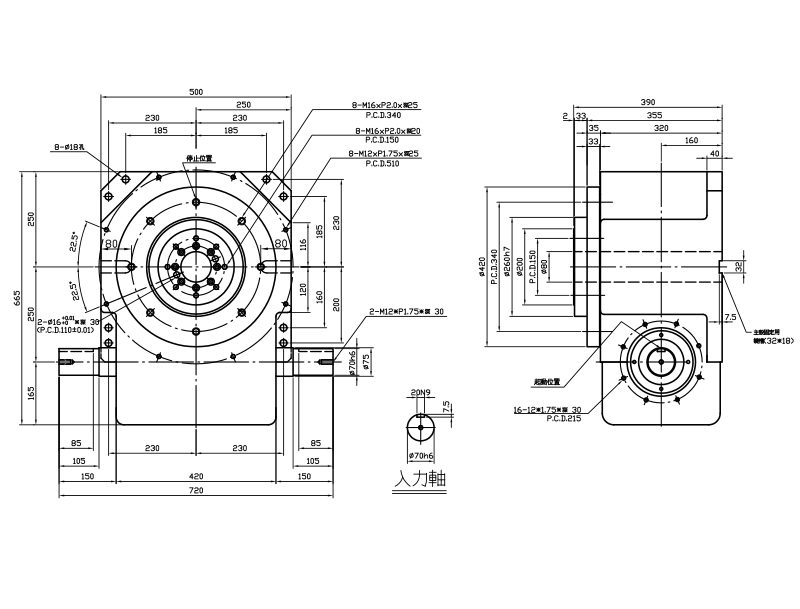

250DT
Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 2500 |
| Allowable radial load on output shaft | C2 | kgf | 1800 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 1900 |
| Max. repetitive bending force on input shaft | C4 | kgf | 2250 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 670 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.86 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 500 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
