Ultrathin Table Model
70DA / 90DA / 110DA / 150DA / 190DA / 230DA
The properties of the series are the same as the table model. It could be endured the heavy axial and radial load. The neces-sary equipment would be assembled directly to the flange and large diameter hollow shaft of the output of the series. Electric wire and pipe from the power source could be passed through the hollow shaft. The series are widely applied in automation apparatus and industrial machinery to work the intermittent motion.
70DA

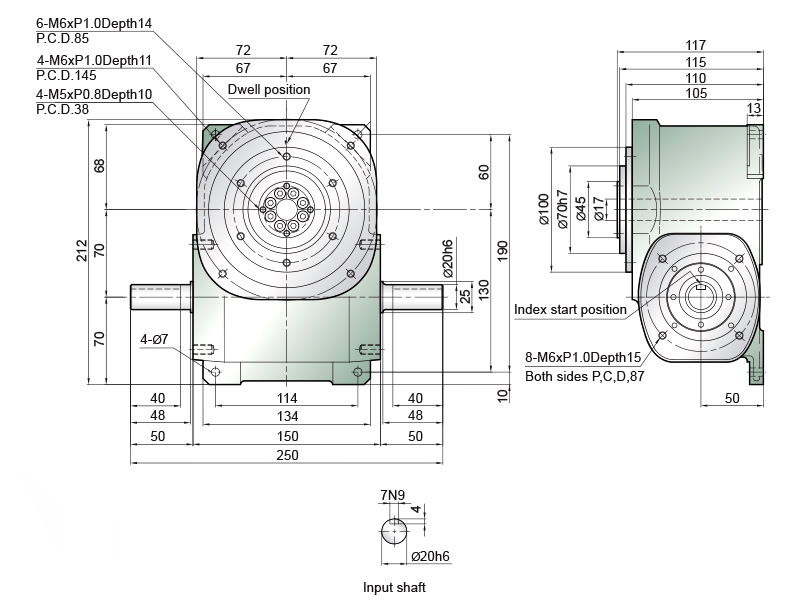

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 316 |
| Allowable radial load on output shaft | C2 | kgf | 142 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 190 |
| Max. repetitive bending force on input shaft | C4 | kgf | 163 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 9.5 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 1.9 x 10-3 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 15 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
90DA

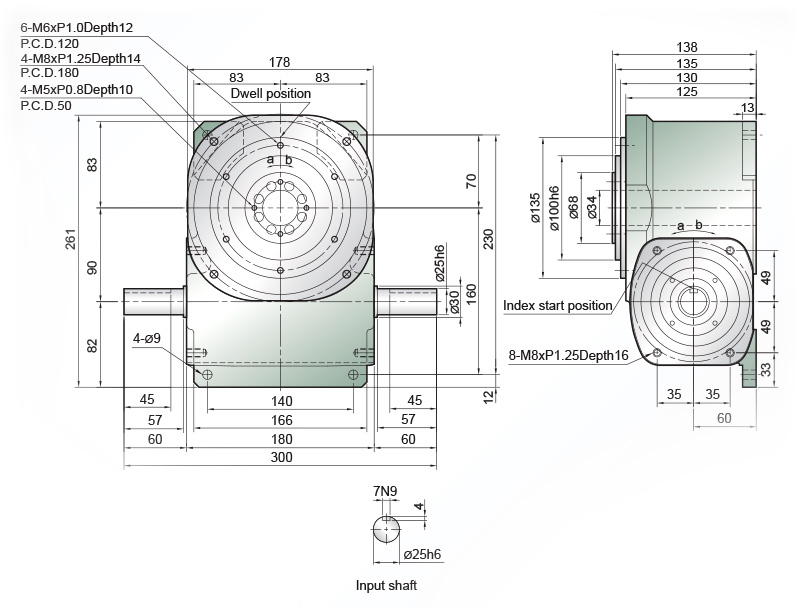

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 500 |
| Allowable radial load on output shaft | C2 | kgf | 210 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 260 |
| Max. repetitive bending force on input shaft | C4 | kgf | 260 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 25 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 2.5 x 10-3 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 28 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
110DA

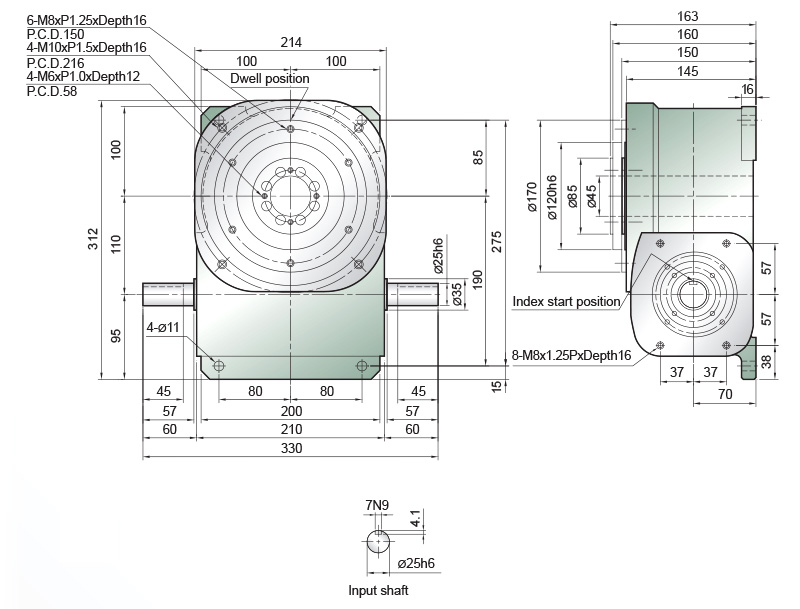

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 700 |
| Allowable radial load on output shaft | C2 | kgf | 350 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 310 |
| Max. repetitive bending force on input shaft | C4 | kgf | 360 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 30 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 6 x 10-3 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 42 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
150DA

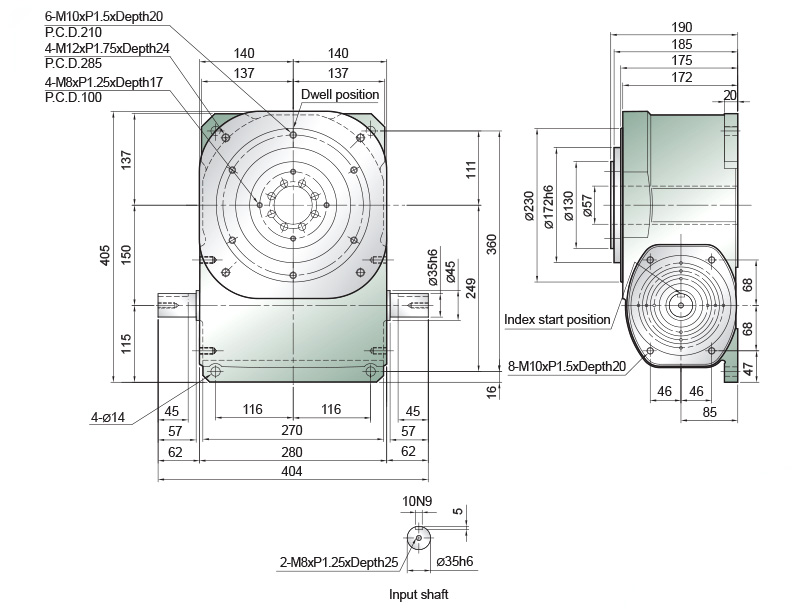

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 1200 |
| Allowable radial load on output shaft | C2 | kgf | 700 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 410 |
| Max. repetitive bending force on input shaft | C4 | kgf | 410 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 40 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.02 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 86 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
190DA

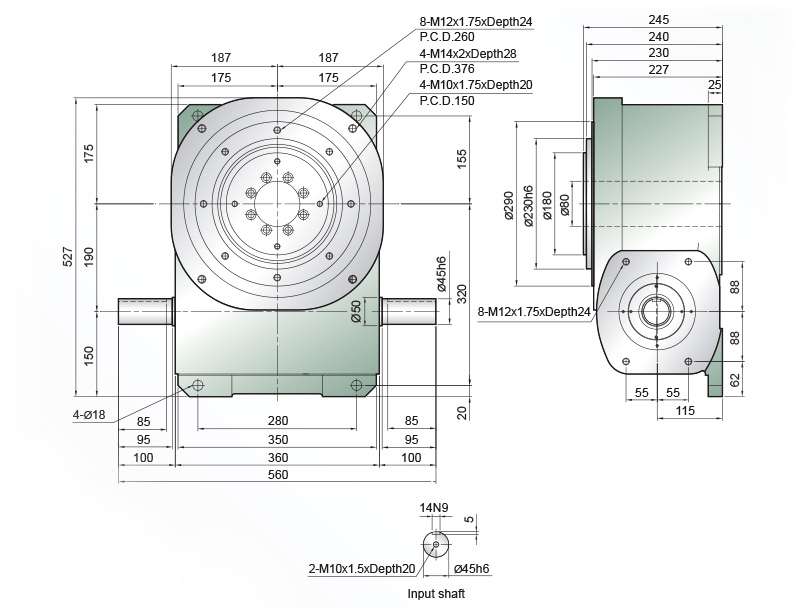

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 1838 |
| Allowable radial load on output shaft | C2 | kgf | 918 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 510 |
| Max. repetitive bending force on input shaft | C4 | kgf | 510 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 61 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.105 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 180 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
230DA

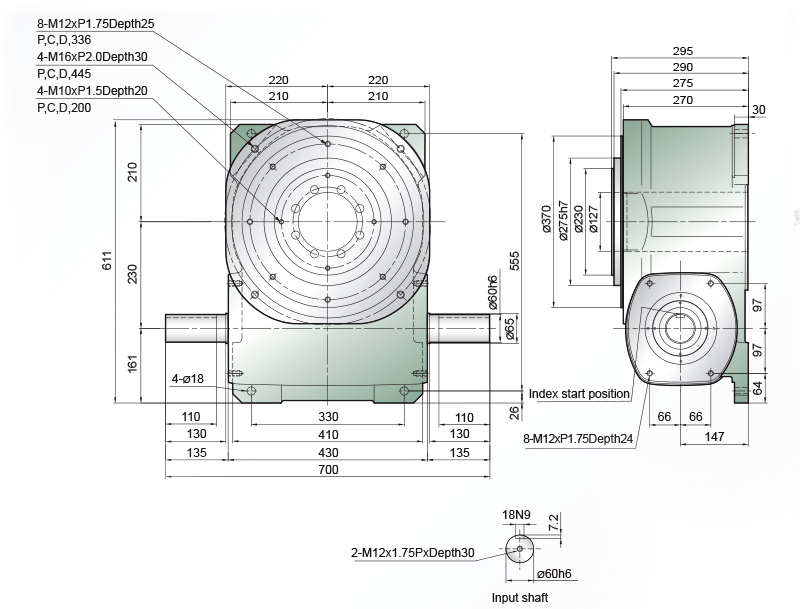

Dimensions
Specification
| Item | Sym-bol | Unit | Value |
|---|---|---|---|
| Allowable thrust load on output shaft | C1 | kgf | 2800 |
| Allowable radial load on output shaft | C2 | kgf | 1300 |
| Allowable torque on output shaft | Ts | kgf-m | Refer torque table |
| Allowable thrust load on input shaft | C3 | kgf | 650 |
| Max. repetitive bending force on input shaft | C4 | kgf | 650 |
| Max. repetitive torque on input shaft | C5 | kgf-m | 80 |
| GD2 of input shaft (Note1) | C6 | kgf-m2 | 0.136 |
| Indexing accuracy | sec. | ±30 | |
| Weight | kg | 285 |
- GD2 of input shaft is a value in dwell range.
- Value of C1 to C5 are those obtained for safety factor=2.
*The company reserves the right to modify the drawings, detailed specifications, please contact us.
